    Auger Bottle Filling And Capping Machine Semi Automatic For Powder Filling

    Ask Lasest Price
    Brand Name : Grand Packing
    Model Number : MFS-R25
    Certification : ISO CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, D/P
    Supply Ability : 35 set per month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

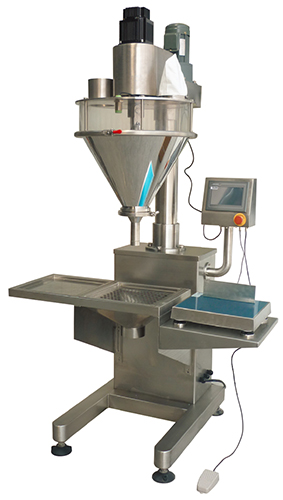

    Auger Bottle Filling And Capping Machine Semi Automatic For Powder Filling

    Auger Bottle Filling And Capping Machine Semi Automatic For Powder Filling


    Brief description


    This series of packaging machines can complete the measurement, filling and other work. Due to its unique design, it is more suitable for packaging powdery materials such as flour, cocoa powder, solid beverage, white sugar, cotton white sugar, monosodium glutamate, solid beverage, veterinary drug, glucose, solid medicine, etc. Powder additives, toner, talcum powder, pesticides, dyes, flavors and fragrances.


    Main features


    All stainless steel construction; combined or open transparent bin, easy to remove and wash without tools.

    Servo motor and servo drive control screw.

    PLC control, touch screen man-machine interface display, easy to operate.

    Designed as a weighing feedback specific gravity tracking type, it overcomes the shortcomings of changes in the weight of the package due to changes in the specific gravity of the material.

    Various product adjustment parameter formulas can be stored and used after preparation, and up to 10 recipes can be stored.

    The spiral attachment can be changed to accommodate a variety of materials, from ultrafine powder to small particles.


    Main Technical Data


    HopperQuick disconnecting hopper 50L
    Packing Weight10 - 5000g
    Packaging accuracy≤ 100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5%
    Filling speed40 – 120 times per min
    Power supply3P AC208-415V 50/60Hz
    Total Power1.4Kw
    Total Weight260kg
    Overall Dimensions1140×970×2030mm

    Deploy List


    No.NameModel SpecificationPRODUCING AREA,Brand
    1Stainless steelSUS304China
    2PLCFBs-14MAT2-ACTaiwan Fatek
    3Communication extension moduleFBs-CB55Taiwan Fatek
    4HMIHMIGXU3500 7”ColorSchneider
    5Servo motorTSB13102B-3NTATaiwan TECO
    6Servo driverTSTEP30CTaiwan TECO
    7Agitator motorGV-28 0.4kw,1:30Taiwan WANSHSIN
    8SwitchLW26GS-20Wenzhou Cansen
    9Emergency switchXB2-BS542Schneider
    10EMI FilterZYH-EB-20ABeijing ZYH
    11ContactorLC1E12-10NSchneider
    12Hot relayLRE05N/1.6ASchneider
    13Hot relayLRE08N/4.0ASchneider
    14Circuit breakeric65N/16A/3PSchneider
    15Circuit breakeric65N/16A/2PSchneider
    16RelayRXM2LB2BD/24VDCSchneider
    17Switching power supplyCL-B2-70-DHChangzhou Chenglian
    18Photo sensorBR100-DDTKorea Autonics
    19Level sensorCR30-15DNKorea Autonics
    20PEDAL SWITCHHRF-FS-2/10AKorea Autonics
