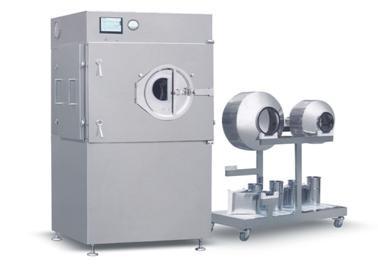

    BG-20 Automatic Tablet Film Coating Machine Touch Screen Pharmaceutical Industry

    Ask Lasest Price
    Brand Name : Grand Packing
    Model Number : BG-20
    Certification : GMP ISO
    Price : negotiable
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 20 sets per month
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    BG-20 Automatic Tablet Film Coating Machine Touch Screen Pharmaceutical Industry

    BG-20 Automatic tablet Film coating machine in pharmaceutical industry


    The product is an ideal film coating machine in current pharmaceutical industry at home. It can be applied in many fields like pharmacy, food, biological products, etc.. The machine is particularly applied to coat tablets, pills, and candies with all kinds of organic or water-soluble film. As a film coating machine, it is widely applied in pharmacy and food industry. Compared with its similar products, this machine acquires distinct advantages:

    • PLC and temperature module controlling system with the touch screen produced by Siemens Germany are applied to provide picture displaying, convenient operation, energy-efficiency, cleanliness and safety, and convenient cleaning, which meets the standard of GMP.
    • Components, which drugs are exposed to, such as high efficiency film coating mainframe, high efficiency hot air filter, dust removal fan and spray device, are all made of imported stainless steel of good quality.
    • The procedures are all controlled by PLC touch screen, automatically or manually.
    • Coating is processed in totally closed environment to prevent dust and slurry from spilling. The surface of box is polished and its light pollution is eliminated.
    • The driver system applies explosion-proof decelerating motor, which can make frequency conversion continuously variable.
    • High efficiency hot air filter can directly capture air from outside, heat the air after primary, intermediated and high efficiency filter, and then provide the air for the mainframe. The air can meet the standard of 100,000 class cleanliness. Dust removal fan can exhaust air to the outside to avoid the influence on central air-conditioning and to save energy.
    • Spray gun is the WA-101 spray gun imported from Japan of good atomization, non-clogging nozzle, adjustable spray volume and angle, and simple structure which is convenient to clean.

    Currently, the machine has relatively large market and good prospect at home. It has been applied by lots of factories for many times and passed the inspection of GMP successfully.


    Application


    The machine is advanced on the basis of BG film coating machine. Its pan can be changed to fit the film and sugar coating of small pharmacy, food, biology, and research products. A mainframe can produce in different batch.


    Features


    The pan changeable film coating machine acquires not only the function of film coating machine with hole, but also the most outstanding feature that the machine pan can be changeable to fulfill the requirements of variable production batch. According to practical needs, the pan and air path can be changed quickly to coat film in different batch.


    Technical Parameters


    ItemsParameters
    Production quantity20/10/5Kg every time
    Speed range of film coating roller3-28 r/min
    Diameter of material inlet280mm
    Diameter of film coating roller520/580/680mm
    Diameter of roller mesh3mm
    Motor power of mainframe0.75KW (The mainframe is totally closed)
    Air source (supplied by the user)

    0.8 m3/min

    Pressure: ≥0.4MPa.

    PLCIt can make the frequency conversion continuously variable and set, adjust, display and memorize the technical parameters, operation speed, air inlet speed, spray force and flow during the operation of the complete machine.
    Hot air cabinetMotor power of hot air filter0.75KW (explosion-proof)
    Filter precision0.5μm
    Filter cleanliness100,000 class
    Air inlet speed1200m³/h (with a class-3 filter)
    Hot air temperature40~80℃ (adjustable)
    Dust removal cabinetMotor power dust removal fan2.2KW (explosion-proof)
    Air outlet speed3571 m3/h
    Surface materialMatt stainless steel
    Dimensions730*730*1660 (L*W*H)
    Weight300Kg
    Spray gunImported spray gun with uniform atomization, adjustable spray shape, position and angle
    Motor power of peristaltic pump0.25KW
    Peristaltic pump speed200-700 r/min
