Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260

    Buy cheap Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260 from wholesalers

    Buy cheap Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260 from wholesalers
    • Buy cheap Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260 from wholesalers
    • Buy cheap Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260 from wholesalers
    • Buy cheap Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260 from wholesalers
    • Buy cheap Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260 from wholesalers

    Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260

    Ask Lasest Price
    Brand Name : Grand Packing
    Model Number : DPP-260
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 25 sets per month
    Delivery Time : 35 working days upon receipt of payment
    • Product Details
    • Company Profile

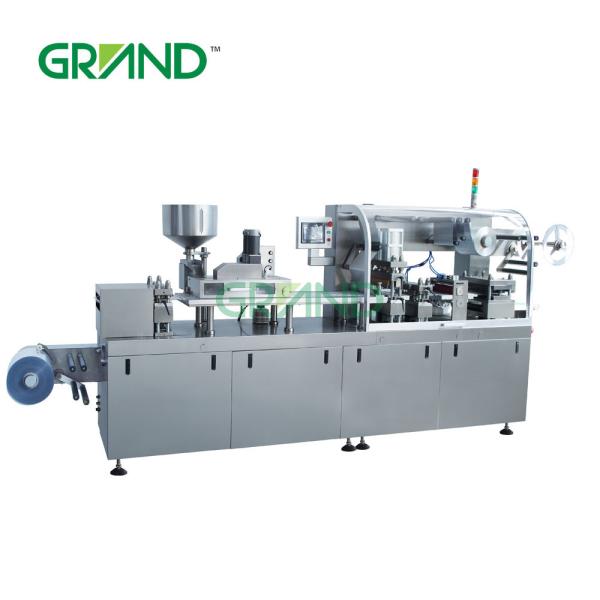

    Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260

    DPP-260 pharmaceutical blister packaging machines for capsules tablets candy


    1. Machine application


    DPP-260 Alu/PVC Automatic Blister Packing Machine is innovated and designed by our technicians with integrating the advantages of domestic and oversea Alu-PVC packing machines. The parts contacting with medicine are made of stainless steel and high-grade aluminum alloy, which is suitable for packing not only plain tablets, sugar-coated tablets, capsules in pharmaceutical, food and health-care industries, but also fluid material such as honey, chocolate cream and spices. This machine integrates ten functions - roll material unwinding, Alu/PVC (Alu-Alu) conveying, blister forming, filling, waste recycling, heat sealing, batch No. printing, indentation, medicine plate cutting and finished product counting in one. The packing material is safe and sanitary with good sealing effect.


    2. Main features


    * The structure design of this machine meets with the requirements of GMP & CGMP standard and human engineering design principle. It adopts advanced intelligent drive and control technique. All the parts contacting with medicine adopt SUS316 stainless steel, which has strong corrosion resistance.

    * The machine adopts the composite structure of carbon steel and aluminum alloy with hard anodic oxidation treatment to improve the corrosion resistance, wear resistance, heat resistance and insulativity of aluminum piece. The film rigidity can reach above HV400 and its thickness can reach tens of um even hundred um, easy to control with high dimensional accuracy, which can be extensively used in the field of aviation, spaceflight and vessel. The packing machine adopting this material can greatly increase its service lift and stability.

    * It has reasonable structure and its electronic components adopt world famous brand such as Siemens, SMC etc. to ensure the machine long-time running stable.

    * With adopting separable parts to assemble together, this machine can be separated into three parts, convenient for user to transport it into clean room smoothly.

    * The mould installation adopts fast-mounting bolt so that the moulds at forming, sealing and batch no. stations can be pulled out horizontally, easy to change.

    * One machine, dual use. Only need to change the moulds, this machine can realize the switch between Al-Plastic and Al-Al.

    * Digital control for stroke, easy to switch the specification.

    Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260

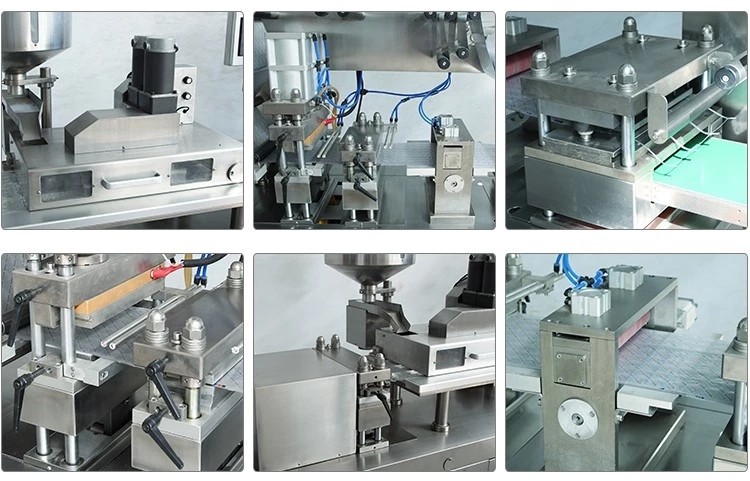

    Detail Show
    Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260

    Main Technical Parameters


    NameAl-plastic blister packing machine
    ModelDPP-260XF
    Main technical parameters

    Cutting frequency: 25-50 times/min for Al-Plastic

    20-35 times /min for Al-Al

    Packing material and specification

    PTP Al foil: Width 260mm thickness 0.02-0.03mm;

    Forming material: Width 260mm thickness 0.50-0.15mm

    Stroke range

    Traction stroke: 30-130mm

    Station fine adjustment:

    Cutting station: 0-100mm batch no. station: 0-50mm

    Forming: 0-100mm , sealing: stable reference point

    Application rangeWestern medicine, traditional Chinese medicine pill, herbal medicine pill, veterinary medicine, sugar coated tablet, compressed tablet, different kinds of candy, food and electronic component.
    Main functionStepless frequency conversion; blister packing, security detection
    Max forming depth (mm)12mm(Al-Al)
    Max forming area (mm2)260×130×20mm
    Qualified rateSee table 2
    Power supply380V 50Hz
    Total electric power (KW)5.7kW
    Compressed air pressure (MPa)0.5-0.7MPa
    Compressed air consumption (m3/h)≥ 0.22
    Cooling water consumption (m3/h)Ordinary tap water for circulation cooling
    Noise (dB)70dB
    Outline dimension (L×W×H mm)4200×650×1640mm
    Weight (kg)1500kg
    Frequency regulation capability of motor20-50Hz

    Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260

    Alu-Alu Pharmaceutical Blister Packaging Equipment For Capsules Tablets Candy DPP-260
