HLSG Series Wet Granulator

• The whole process consists of two procedures: mixing and granulating.
• The adhesive is charged into the material pot from the conical hopper. Along with the filling of adhesive, the powder raw materials keep rotating in the pot under the action of stirring paddles once the hopper is closed. In the meanwhile, they grow up the shape of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as kneading by paddles and conical pot wall, all materials gradually turn loose and soft. At last, open the material outlet and the wet granules will be pushed out under the centrifugal force of paddles.
• The soft materials are granulated via the granulating cutters but not the forced extrusion, which will be cut into tiny and uniform granules under the semi-fluid state, realizing the mutual transformation between two different materials.
•

• Mixing powder with powder (high precision uniformity)
• Granulating powder with adhesive (for dense granules)

• Unique advantage: The paddle can be lifted about 3cm automatically, easy for pot cleaning, manpower saving, no dead angles and no residue.
• With 3 seals: Imported skeleton seal (upper and lower), gas seal, the exclusive developed third separation seal of our company. Make sure no transmission system, bearing lock and materials polluted.
• Siemens PLC, touch screen and dual frequency control system.

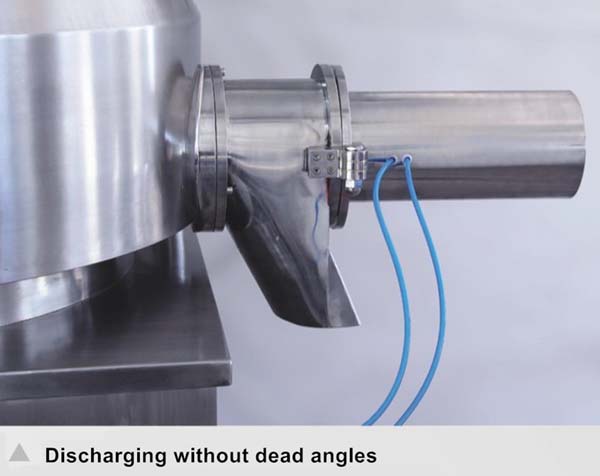

• 45° bevel of the material outlet port, material outlet automatically. No dead angles, no residual, easy to be cleaned.
• Belt transmission, no oil leaking, easy to be changed if worn. Cheaper and economic.
• Pot bottom with jacket for cooling, avoid motor lock caused by overheated material which stick to the pot wall.
• Operating platform has no dead angles, easy to be cleaned and meets the standards of GMP (CGMP).
• Automatic pot-cover opening and closing system, pneumatic components and security alarming device are applied.
• The gap between the paddle and pot bottom can be decreased to 0.5-1mm. Thick stainless steel used from 8-12mm, high grade, not easy to be deformed.
